2006 D4D 3.0 4x4 Hilux - New Injectors - HKS F-Con D??

[droppa]

what is the function of the lil al fitting on the inlet line to he filter.........

[Team Loco]

Speaking of gas milage and fuel, this is high in priority on my list as I have already gotten some bad fuel and had to replace the filter, flush tank and drain the fuel system...


http://www.asap-supplies.com/marine/cav ... d-elements

You can get these around, I saw them at one of the marine shops.. great for eye-balling your fuel quality via the clear bowl on the filter... note that this will obviously not replace the stock filter, just run inline before the stock water trap/filter.

I had these installed on our fleet. They served as pre filters. Unfortunately they affected the fuel flow on our mechanicla pumps. So we ended up getting cleaner fuel but less power. They were then removed

[PariaMan]

Sounds reasonable more restriction less flow therefore less power!

[bt50]

will there be any damage to the pump by installing a prefilter? And also how much power is really lost if installed.

[Bezman]

i think because the common rail system pressurizes the fuel rail and has a return it shouldn't affect the fuel flow to the engine. its a common upgrade to the aus hilux's and that pic is actually fitted toa 3.0 d4d like mine...

[bt50]

I have reviewed a couple Aussie and South African websites and have noticed that most toyota owners (d4d engine) install these to mitigate against water damage. I have also seen that in addition to the prefilter, another filter <5 microns is placed after the OEM canister/filter to provide addtional filtration.

http://www.4x4community.co.za/forum/sho ... hp?t=47737

[Bezman]

Hey fellas.

well I'm about to do some work on the Hilux again, going 33's and new shocks/lift

Kit Similar to this one on Ebay for the Tacoma
http://www.ebay.com/itm/130806299946?ss ... 1423.l2649

Bilstein 5100 Series Shocks for 2005-2013

Toyota Tacoma 4wd & 2wd "Pre-Runner" Ride Height Adjustable

Bilstein 5100 Series Ride Height Adjustable Front shocks with 5100 Series Rear Shocks for a

2005-2013 Toyota Tacoma 4wd & 2wd "Pre-Runner"

Pictures are for Illustration Only, actual shocks may differ.

Shocks are for 6 Lug vehicles Only!!!
Fronts & Rears!

Bilstein Part #

Front Bilstein Shock Part #: BE5-C475-H1

Rear Bilstein 5100 Series Direct Replacements # BE5-C476-H0:

These shocks are equal to the Bilstein part #’s:
BE5-C475-H1 (24-186711)
BE5-C476-H0 (24-186728)

Note: Front Shocks Do not come with any "Stem Bushings"
and they will have a Stamped Steel "Black" lower spring plate and "Black" dust cap.

Features:
Fronts: 0” to 2.5” Ride Height Change
Rears: Will accommodate 0"-1.5" of Lift

The Front Shocks have groves in the body so that you can set them to Stock Height or up to an average of 2.5" Lift. These Shocks were designed to level out a stock truck from front to back.
These are the Bilstein 5100 Series Shocks and they are a direct bolt on application.
Zinc-plated shocks that install like factory replacement shocks and are designed to correct the factory rake.
The OEM spring seat is repositioned to provide more Pre-Load to the factory spring. The result is a level front to rear ride height.
An extremely simple and effective solution to level out your truck and improve ride quality.

[jpec]

body mount chop and re-gear as well? this would look sick

[Paullct]

sweet

[Bezman]

with that kit there is no need for the body mount chop once the right offset wheels are used.

FYI - the 2005+ Tacoma and the 2005+ Hilux use the same suspension, and this kit as about $350 USD is a steal of a deal compared to the $800 USD++ most ppl want for Hilux specific kits which are identical

Anyone interested, my 255/70R16 BF Mud Terrains will eb for sale very soon... less than 1500km's on them.

[lighthammer]

nice setup there, bilsteins are excellent shocks (a bit higher rated than rancho's and king koils, and about the same or better than Old Man Emu / ARB).

Are those the re-valveable and adjustable versions?

[Bezman]

they have adjustable spring seats, raise as much as 2.5"

[lighthammer]

great shocks!

[droppa]

callin rx80, great kit here, performance will be flawless

[Bezman]

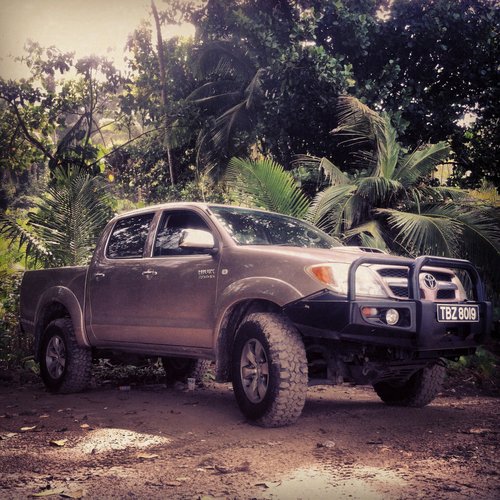

Just some recent pics and vid

[lighthammer]

How the suspension upgrade so far, bezman?

[Bezman]

they not on the van yet, waiting on some more parts to put in one time.

[rx80]

What bumper the blue have installed?

[badart]

^ X2 looks OEM

[droppa]

white with black bonnet looking mean, on what 18s?

[gundelero]

loving that white hilux...sweeeeet

[Bezman]

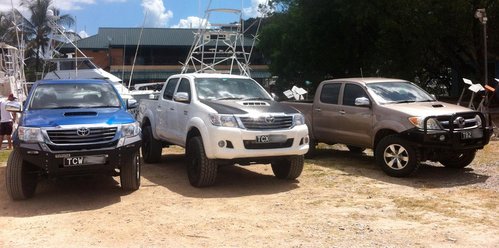

white lux is:

3" spacers/lift kit
18" Wheels with 285/60R18 (33") Toyo A/T's

Blue Lux has the new Kit that Jason Comach and them are bringing in for Hilux, cant remember the brand

[gundelero]

what's the average price for one of these kits?

[Bezman]

hahah if ya hadda ask...
Lift kit is ~$4000
Bumper ~$6000++
Skid rails ~4000+
rear bumper ~$4000+

[gundelero]

my wordddddd!!!!!
i'll buy my hilux and drive it stock yes.

[droppa]

stock truck vs lifted truck is two different game soldier.........

[gundelero]

droppa, i hear u and understand what you're saying, but I don't have the time to go off-roading, even though I love it. so, in my view, spending all that money to lift a truck for just the aggressive look isn't worth it. that's just my view right now. who knows, in the future things may change.

[Bezman]

the white Lux will more than likely never go offroad, but to fit those 33" tires under there you gotta lift it.. more tire = more rubber = more grip (street/offroad).


You gotta pay to play!

[lion]

do you know anyone that have 1kd injectors for the toyota hilux3.0 i. they are pretty expensive, so i am looking for someone that have them second hand i need 4.

[Bezman]

Just a little update, recently the HIlux has gotten allot of love and attention, aka, money spent on her.

I did the 100k Service at Toyota, and also did some preventative maintenance as well and changed the water pump. I then did a full fuel system service and got new Injectors from Sookhai's Diesel Service which made the world of difference in the van.

So since the van is working so well and I have decided to keep her around for a while again. I am going to go ahead and install the Bilstein Shocks on all four corners.

Front are Bilstein 5100's and rears are Bilstein 5125's. will post pics soon.
The fronts offer 1-3" lift and the rears will accommodate up to a 2" lift.


Bilstein (24-186711) 5100 Series FRONT - 1-3" Lift via adjustable spring perch.
Bilstein (33-185552) 5125 Series REAR - 10" travel.

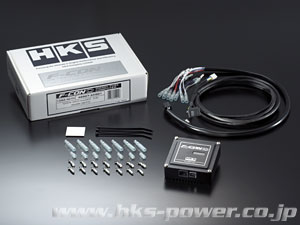

But the real thing I am looking at is the HKS F-Con D. It is a piggy back chip made exclusively for the 1KD-FTV and give up to 40PS (approx 50hp) increase and gobs of torque.

Diesel fuel increasing device for TOYOTA HIACE KDH200 series that is popular base vehicle for customization.

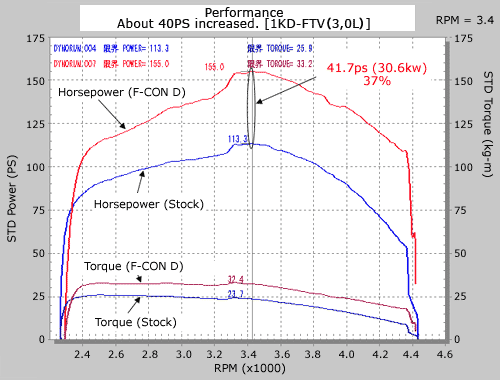

About 40PS will be increased for 1KD-FTV engine (late model) and about 20PS for 2KD-FTV engine. 20 - 30% enhancement from stock engine.

Features
Diesel fuel increasing device [1KD/2KD-FTV engine (HIACE KDH200#)]
1 By increased torque, number of kick down will be decreased and decreased throttle angle may improve fuel consumption.

Installation
F-COND has a connector for harness and 7 wires of the harness will be connected directly to vehicle harness of ECU side. (Modification is required.)
ON <---> OFF switch is available for easy recovery to stock control.

http://www.hks-power.co.jp/en/product/e ... index.html

Ordering it today, going to ask Ryan at United Performance to install as I know he is familiar with the HKS F-Con..

There is also a FULLY programmable F-CON iD for Common Rial Diesel engines.
http://www.hks-power.co.jp/en/product/e ... index.html

Was going to ask Sookhai's of they can install and tune, but dont want to go aftermarket turbo and bigger injectors etc. I think the regular plugin chip/module will work fine..

More updates soon.
