so i hit a lil design flaw.....when the end of the bolt is welded onto the jaw....it gets stuck when trying to close it....its because the screw needs to turn to push forward but since its welded it cant turn freely

[3stagevtec]

The jaw you speak of is not shown in the pics? If you are attaching a moving plate / jaw to those threaded rods, you will need to make the end able to swivel.. similar to how the G clamp is designed..

A guide would also be recommended so the moving plates remain square when tightening,.

[[X]~Outlaw]

Hey X_Factor let me give you a little help with the design of your vise.

1. What you want is one fixed jaw and one moveable jaw
2. As you realized, you cannot fix the screw to the moveable jaw for obvious reasons
3. You need to design your bottom plate with a mechanism for the moveable jaw to slide on. This can be in the form of dovetail ways, t-slots or the simplest solution that requires no complex machining is steel rails.

Below are the vises I use in my shop for different jobs.

This vise I use for very quick jobs that do not require a lot of precision. This is the type of vise you are trying to design.





As you see the screw is not attached to the moveable jaw


The moveable jaw is attached to a brass T-Nut that slides within a T-Slot the length of the base


Now the reason I do not use this for work requiring a high degree of precision is this. Because of the design of the moveable jaw and screw arrangement, when your work is clamped tight the screw pushes the moveable jaw up a bit and in turn moves the work up as well (on the side of the moveable jaw). This most likely will not be an issues for you because of the nature of your work.

Below are the two vises I use for very precise work.

These are commonly referred to as "screw less" vises because they don't have a screw driving the moveable jaw. The jaws slide freely back and forth. The screw on the moveable jaw is set at an angle and is only used to tighten the jaw against the work (usually just a half turn does the trick). Since this screw is set at an angle it pushes the moveable jaw down and in turn the work is pulled down together with it. The end result is that your work is held perfectly level.

This is how they are used in practice:

1. Hold the work between your jaws.
2. Slide the moveable jaw up to your work (resting on your parallels if required)
3. Tighten the screw on the moveable jaw
4. If needed gently tap the end of the work on the side of the moveable jaw to ensure it is in fact seated level.

I use this for small delicate work. The jaw plates are removable and can be machine for a specific job.




This vise is what I use for holding bigger jobs. The jaws are not replaceable and are ground to 0.0002" square and flatness.



Vises are just one way to hold work and most times my work is held with a jig made for the job or cam clamps that screw into the threaded holes in my mill's work plate, this allows me infinite number of setups.

Keep us posted with your design.

[1UZFE]

Fellas i need to get a new tool set for my car.
Tool set should have socet set and screw driver set.
Where can i get this at a resonable price?
Thanks.

[supercharged turbo]

Just came back from Allied Home Centre in sando.Would recommend you go there.

[X_Factor]

so i got a little 220v stick welder borrow (100amp max) ....it worked well enough





so i needed to complete the vise/clamp project so i can start this project
it held the end cap firmly in place with no movement..... so i can drill a 7/16 hole
and then run a 1/4" npt tap

[1UZFE]

Just came back from Allied Home Centre in sando.Would recommend you go there.

Thanks bro..

[Ted_v2]

Any recommendations for a mig welder.

Purpose -
Welding of I beams for roof.
Welding of small body works.
Welding of possible roll cages.
Custom engine mounts.

For those tasks above a mig welder would be able to work?
Or would a arc welder be needed.
I'm seeing them ranging from 16-2500$ for a Lincoln

[3stagevtec]

Any recommendations for a mig welder.

Purpose -
Welding of I beams for roof.
Welding of small body works.
Welding of possible roll cages.
Custom engine mounts.

For those tasks above a mig welder would be able to work?
Or would a arc welder be needed.
I'm seeing them ranging from 16-2500$ for a Lincoln

180A Lincoln MIG can work. Use flux core welding for the heavier gauge materials (I beam, engine mounts etc) and MIG for body work etc.

[pugboy]

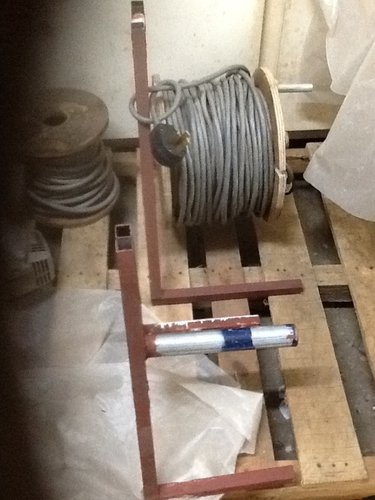

Welded up a couple cable reels today.

Arc welder is more powerful and suited to ibeam and heavier work.
More flexible is using in physically out of the way places.

Mig with co2 is more suited for thin metal like autobody.

Those cheap mig welders tend to be extremely low power.

I started welding with a 180amp mig welder and it is a good starting power.
I recently bought a chinese 160amp inverter arc welder and it is working good so far.
Can weld 1/8 steel easily. Learning to strike arc required some technique but not hard.
This inverter welder is literally the size of a shoe box.

[Ted_v2]

If I can recall properly I saw it for 2200$ for a 110 v 180A Lincoln
There's the 160a for less

[pugboy]

a 110v mig machine would never do 180a,
they normally max out at 140a which is barely good enough for rhs.

[Ted_v2]

Well I guess I saw wrong.

Will go back and take pictures this time.

[pugboy]

a 180a mig welder will cost $8k or there about.

you can get the 160a inverter stick welder for $1200 locally

[Sanctifier]

Welding of I beams for roof.
Welding of small body works.
Welding of possible roll cages.
Custom engine mounts.

IMHO you need a VERY good quality dual-voltage unit (at a MINIMUM) if you want to weld a roll-cage, I-beams or engine mounts properly.

USA Weld has a dual-voltage HTP welder that is hard to beat for value for money.
The output @ 110-volts = 140A... and @ 220-volts = 160A... allowing it to weld "light gauge sheet metal to 5/16" steel".
They have one of the best wire-feed mechanisms in the business (to prevent "bird-nesting") and the US $1,300 "Sale" price + FREE Shipping in USA (normally retails @ US $1,800) is pretty good these days.

Link--> HTP 160DV MIG.

BTW I bought their largest 220-volt HTP 2400 unit a few years ago. That one will weld almost anything.

My $0.02¢

[3stagevtec]

Dansteel had the 220V 180A for around $6xxx last I saw.. that was a really good price!

[3stagevtec]

Welded up a couple cable reels today.

Arc welder is more powerful and suited to ibeam and heavier work.
More flexible is using in physically out of the way places.

Mig with co2 is more suited for thin metal like autobody.

Those cheap mig welders tend to be extremely low power.

I started welding with a 180amp mig welder and it is a good starting power.
I recently bought a chinese 160amp inverter arc welder and it is working good so far.
Can weld 1/8 steel easily. Learning to strike arc required some technique but not hard.
This inverter welder is literally the size of a shoe box.

Is that cable for the welding plant? 6mm square wire?

[Firewall]

Hey...

Anybody know where I could get some 5mm aluminum or steel bent into a shape?

[X_Factor]

what kinda shape?

[Firewall]

Excuse the high precision sketch, but pretty much this shape. Don't really want to build a brake if I can avoid it

[pugboy]

Tbh i am not sure but i got the cable from an electrical place and they sized it for me.
It is fairly thick and a pia hence the reels.

Welded up a couple cable reels today.

Arc welder is more powerful and suited to ibeam and heavier work.
More flexible is using in physically out of the way places.

Mig with co2 is more suited for thin metal like autobody.

Those cheap mig welders tend to be extremely low power.

I started welding with a 180amp mig welder and it is a good starting power.
I recently bought a chinese 160amp inverter arc welder and it is working good so far.
Can weld 1/8 steel easily. Learning to strike arc required some technique but not hard.
This inverter welder is literally the size of a shoe box.

Is that cable for the welding plant? 6mm square wire?

[X_Factor]

latest contraption........








finally i can have some order to sockets all over the place!!


been lookin for this for sooooo long....it can be used by ur fingers or a 1/4" ratchet

[Strugglerzinc]

What is that contraption? Portable air?

[Firewall]

So pretty much this.....but with a higher degree of accuracy and repeatability.

Anyone?

[X_Factor]

What is that contraption? Portable air?

DIY injector cleaner!!

was gonna order the OTC injector cleaner but it was sold out
saw the diy version off youtube....didnt cost much to build
about 65USD

[pugboy]

X, you can build one of those air cannons,
same type of construction, using large air tank exiting to smaller bore for more pressure/speed

[X_Factor]

doh give me ideas now....

[Xplode]

Where can I find this to buy?

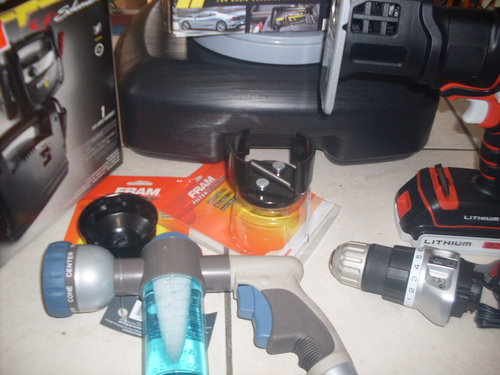

used this many times $60 TTD for the oil filter tool and $150TTD for the short stubby double headed 1/2'' & 3/8'' ratchet ,"it's so cute and very strong" pm if you need one heading Miami month end,always buy a next set,only good for Fram PH3593A ,med. and large size oil filters not the small PH6607 Tiida/Almera
