The Official CS Lancer Thread!

[idlemind]

Yup not bad.
Thats rite daniel, I eh ha no soup up car no more..

[nissan4life]

heres the diagram of the torque converter.

Transmission oil is leaking out of the bottom so im trying to figure out which seals to change.

So far Im only seeing 1 seal 27097

Zeroone i think brotherhood had this problem earlier this year,cant remember exactly what seal he changed but if my memory serves me correct its back crank seal and torque convertor seals.He may be able to assist

[turbo_beast369]

ZeroOne if it's not that seal then it's most probably 26136

is the transmission oil leaking from between the engine and tranny?

[ZeroOne]

yes leaking from between the engine and tranny

[ronsin1]

^^^ make sure you change the crankshaft seal as well

[ZeroOne]

will do.

Looking to change all necessary seals while im at it

found the post viewtopic.php?f=33&t=98180&hilit=seal&start=10170#p6823596

Im reading that the leak was from a side panel and that the tranny does not have to come down to change the troque conv seal.

[turbo_beast369]

yeh once oil leaking out the converter housing then 26136 is the culprit..I suggest you change both axle seals one shot

[ZeroOne]

ok, so tranny does not have to come down right?

[ronsin1]

^^^ no it does not

[turbo_beast369]

let your mechanic or whoever put the car on a ramp and see exactly where the leak coming from

[BrotherHood]

will do.

Looking to change all necessary seals while im at it

found the post viewtopic.php?f=33&t=98180&hilit=seal&start=10170#p6823596

Im reading that the leak was from a side panel and that the tranny does not have to come down to change the troque conv seal.

Yep, that's correct. Transmission does not have to comer down. Jai's Transmission in Aranguez did the labour for me. Cost me $300 to fix. Dropped the car before I went to work around 9ish qand they called me around 3pm and said they were done.

nissan4life, your have good memory bruh

[ZeroOne]

BrotherHood what seals you changed?

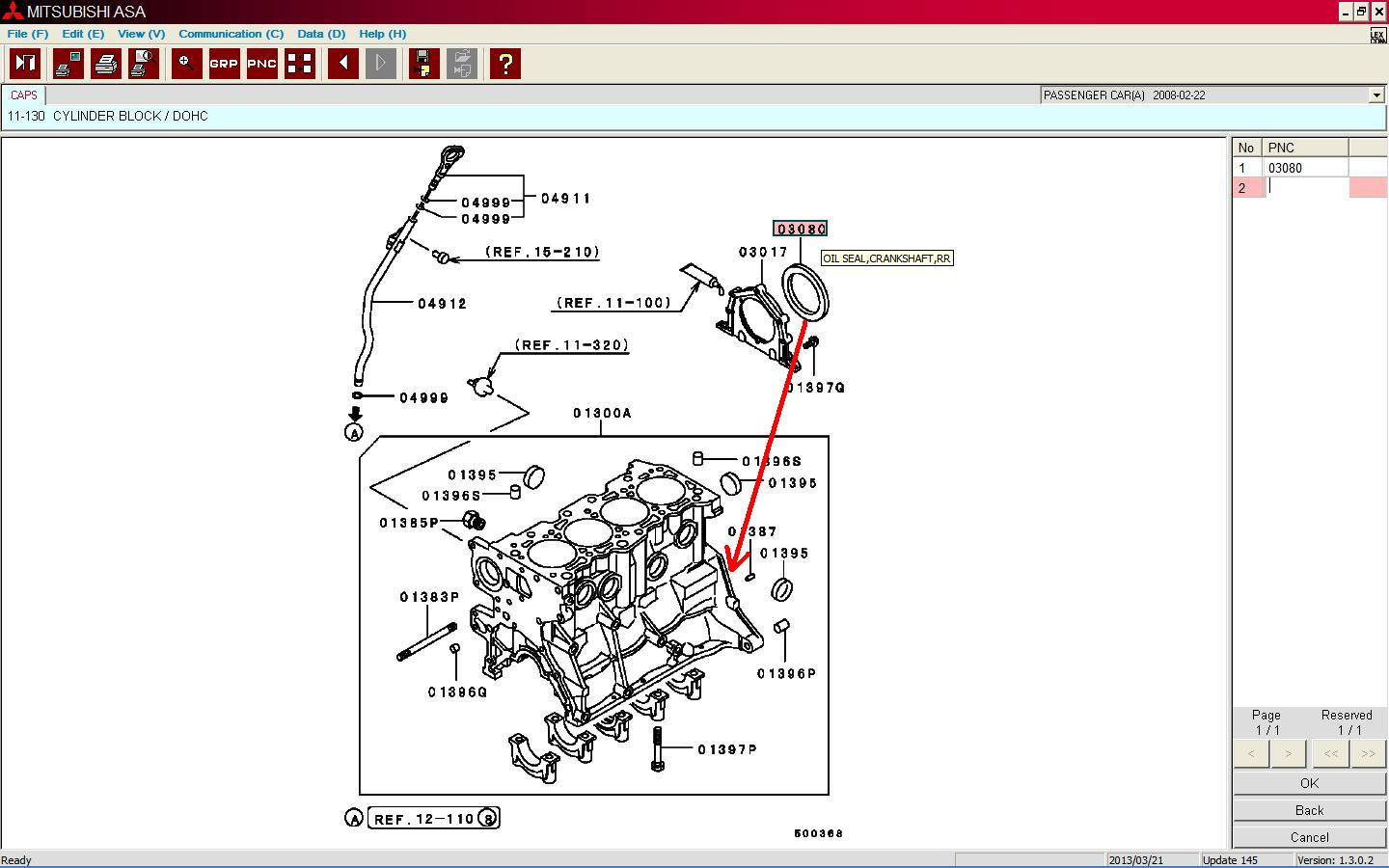

ronsin1 The back crankshaft seal is where exactly?

[BrotherHood]

BrotherHood what seals you changed?

The leak was on the back cover of the transmission. Those were their exact words, the guys that did the labour that is.

Also changed axle seal.

[turbo_beast369]

BrotherHood what seals you changed?

ronsin1 The back crankshaft seal is where exactly?

You have to unbolt the flexplate from the crankshaft to get to that seal

[ZeroOne]

Thats close to the timing belt?

cause I changed a crankshaft seal when i replaced the timing belt.

[turbo_beast369]

Timing belt is on the other side of the engine...you changed the front crankshaft seal

[ZeroOne]

ok i see, i see

[ronsin1]

the back is the end of the engine that is mated to the transmission

[ZeroOne]

hmmmm interesting

[madman2961]

anyone know where and how much for the 15 inch CS3 lancer rims?
i kinda interested in these below

[Biggs3ne]

changed my IP bulbs yesterday..d hardest part at first was unclipping d dongles...which was a breeze with d assistance of a smaller flat head

[star369]

CS men join this group on fb lewwe organize the crew https://www.facebook.com/groups/4300935 ... 8/?fref=ts

[ZeroOne]

just spoke to my mech he said I should change 3 seals:

1. Transmission front shaft seal
2. Torque converter housing seal
3. Rear engine crankshaft seal

[turbo_beast369]

on ASA there isn't an option to buy the torque converter housing seal tho

[ZeroOne]

Just called DM, Transmission front shaft seal and Torque converter housing seal are the same thing.

Yes it is sold for 130+VAT
Rear engine crankshaft seal selling for 270+VAT

[fwape]

well i had a successsful attempt at changing the ac bulbs it was really easy just prise out the ac knobs remove screws and pull out dash but be careful with the deck. Then just pull out the bulb, it was enclosed in a holder so you have to pull out the bulb itself. I was surprised just to find 2 blubs behind there.

I have to check maturas tommorrow to see if they have the bulb. It was blown just as i suspected.

It have a woman working by renos? When i went to get my ip check he had a man there working with him.

You or anybody else know how to change the lights for the spedometer and odometer? cause mine don't work cs3a '05 Lancer

[BrotherHood]

well i had a successsful attempt at changing the ac bulbs it was really easy just prise out the ac knobs remove screws and pull out dash but be careful with the deck. Then just pull out the bulb, it was enclosed in a holder so you have to pull out the bulb itself. I was surprised just to find 2 blubs behind there.

I have to check maturas tommorrow to see if they have the bulb. It was blown just as i suspected.

It have a woman working by renos? When i went to get my ip check he had a man there working with him.

You or anybody else know how to change the lights for the spedometer and odometer? cause mine don't work cs3a '05 Lancer

Go to page 14 of this thread. There is a step by step referal on how to disassemble the instrument cluster.

[Team Loco]

anyone know where and how much for the 15 inch CS3 lancer rims?
i kinda interested in these below

bolo in penal would have those.

btw peeps, looking to upgrade, (again), to the cy4a. so the cs3 is up for sale

viewtopic.php?f=55&t=493765

[KURMAman]

anyone know where and how much for the 15 inch CS3 lancer rims?
i kinda interested in these below

bolo in penal would have those.

btw peeps, looking to upgrade, (again), to the cy4a. so the cs3 is up for sale

viewtopic.php?f=55&t=493765

ramrattan's in vistabella as well. Also, up charlieville side had some sets..saw them when i was passing on the main road.

[EXODUS]

anyone know where and how much for the 15 inch CS3 lancer rims?
i kinda interested in these below

bolo in penal would have those.

btw peeps, looking to upgrade, (again), to the cy4a. so the cs3 is up for sale

viewtopic.php?f=55&t=493765

bolo is in b/pore, balliram is in penal. wud be on the lookout...
