DIY Clutch Vacuum Bleeder

Postby nareshseep » June 17th, 2013, 2:01 am

Long story short, replaced master cylinder and slave cylinder seals and was getting issues bleeding because of the air that was in the system. Even with priming the master cylinder I was not able to bleed the clutch. I knew I had to get a vacuum bleeder. And we all know how easy its to find one of those in Trinidad. Necessity is the mother of invention so after exhausting my search for ideas and searching on the internet I saw most folks used a jar with two tubes, one goes to the vacuum source and the next goes to the bleeder nipple. I had no means of getting these taps to make an airtight connection, did not have long enough aquarium tubing and was a bit hesitant to run back the next tube to the intake manifold for vacuum. After drinking a lucozade I came up with this :-

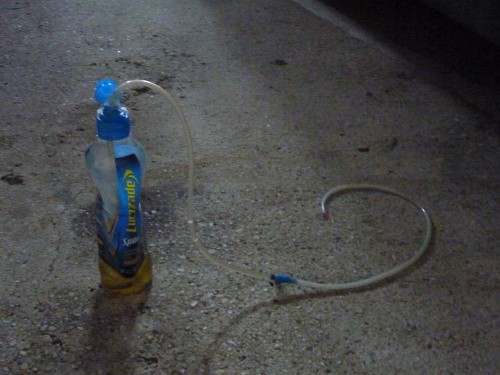

Lucozade bottle

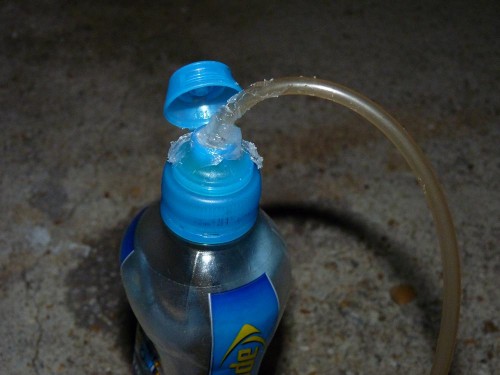

Silicone

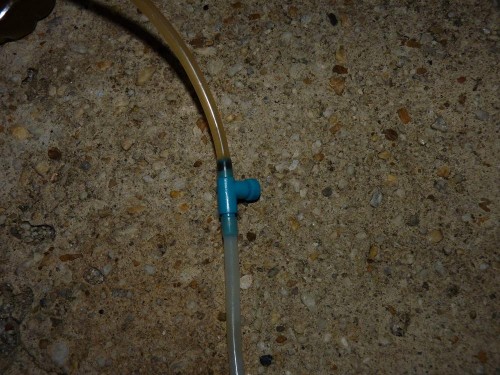

Aquarium 1 way valve




STEPS
1. Attach end of tubing to bleeder valve on the slave cylinder
2. Close the valve on the tubing
3. Unscrew bottle cap
4. Whilst decompressing the bottle, screw on the cap, you will now have a vacuum
5. Open valve , this will pull brake fluid into the bottle, keep an eye on the brake fluid reservoir and top up as necessary
6. Repeat 2-5 till there are no more bubbles in the system.
7. Tighten bleeder screw
8. Test clutch


In about 15 minutes the system was bled. You dont need someone to assist with the pumping of the clutch with this. You can bleed the clutch yourself.
Last edited by nareshseep on June 17th, 2013, 2:17 am, edited 2 times in total.

Russellgold
3NE 2NR for life
Posts: 193
Joined: March 23rd, 2011, 9:29 pm
Location: south trini

Re: DIY Clutch Vacuum Bleeder

Postby Russellgold » June 17th, 2013, 2:14 am

i have to save this info ..
boss invention dai bro

User avatar
FullStop
punchin NOS
Posts: 3198
Joined: August 11th, 2007, 8:47 pm

Re: DIY Clutch Vacuum Bleeder

Postby FullStop » June 17th, 2013, 8:44 am

good stuff man.

User avatar
VexXx Dogg
TriniTuner 24-7
Posts: 16815
Joined: May 1st, 2003, 10:23 am
Location: ☠☠☠

Re: DIY Clutch Vacuum Bleeder

Postby VexXx Dogg » June 17th, 2013, 10:39 am

good stuff there nar

User avatar
libra
3NE2NR is my LIFE
Posts: 770
Joined: March 25th, 2009, 10:40 pm
Location: central

Re: DIY Clutch Vacuum Bleeder

Postby libra » June 17th, 2013, 8:29 pm

woi good stuff there !

User avatar
cinco
TriniTuner 24-7
Posts: 18211
Joined: January 6th, 2006, 3:21 pm
Location: Does this rag smell like chloroform to you?
Contact:

Re: DIY Clutch Vacuum Bleeder

Postby cinco » June 17th, 2013, 9:12 pm

burr the mad scientist strikes again!
ah cud use a glass lucozade bottle?

User avatar
FullStop
punchin NOS
Posts: 3198
Joined: August 11th, 2007, 8:47 pm

Re: DIY Clutch Vacuum Bleeder

Postby FullStop » June 18th, 2013, 9:10 am

yes cinco, but it must be softened up first, to do this, you need to put it on a hard surface...then sit on it...
