DIY : D15B Exhaust up grade

[Gx7]

yea folks changed my d15b exhaust manifold with CAT to a header very simple job as shown

tools needed
- 12 , 13 , 14 , 17 spanners
- 22 for the sensors
- rags

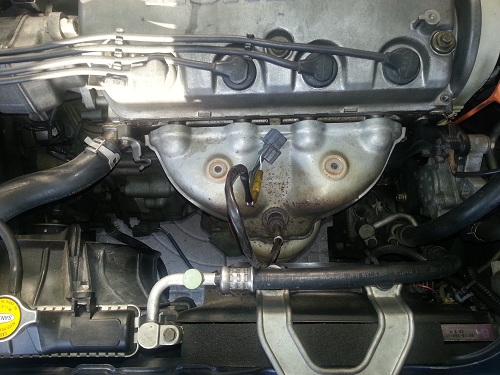

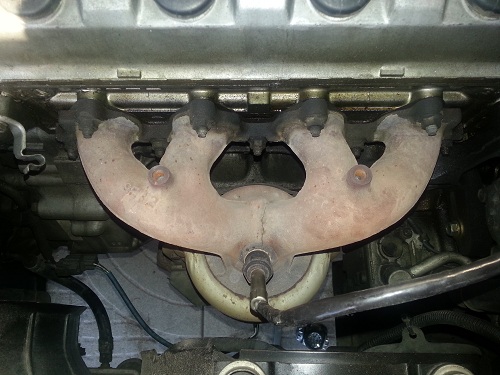

stock manifold

remove the 12 bolts for the shield and un jack the both oxygen sensors

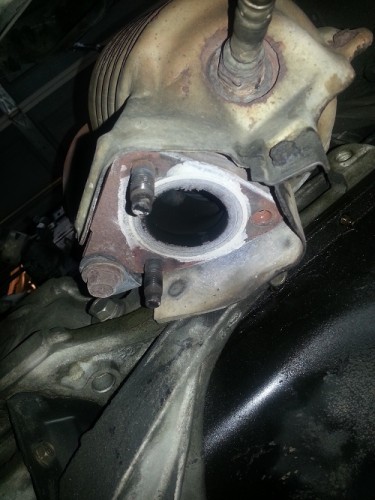

remove the 3 14 bolts from the bottom flange ....

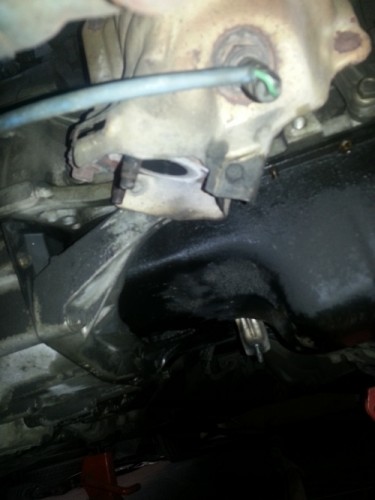

also the remove the back flange its jus 2 bolts holding it up

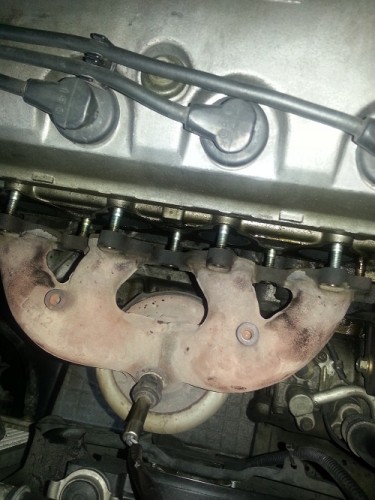

remove the 12 bolts from the top of the exhaust manifold

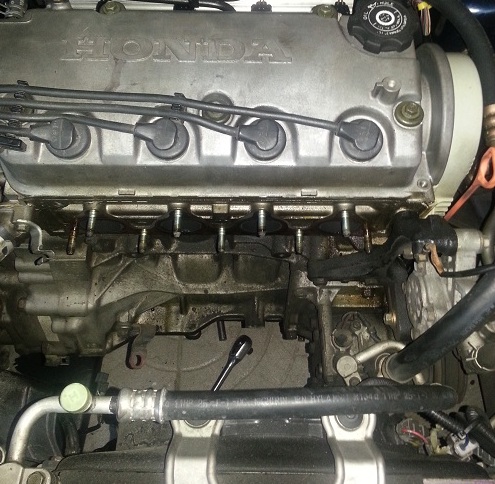

manifold removed also take out the gasket

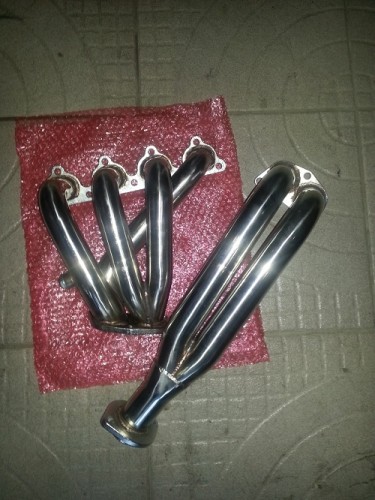

extractor Manifold

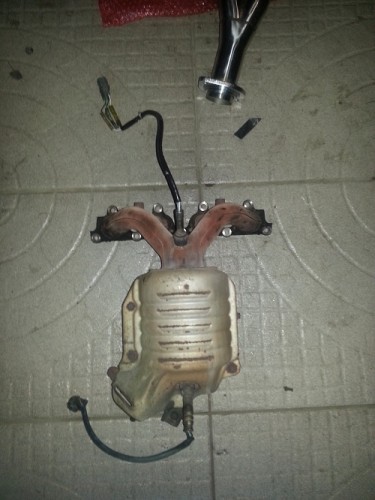

stock manifold with sensors

[Gx7]

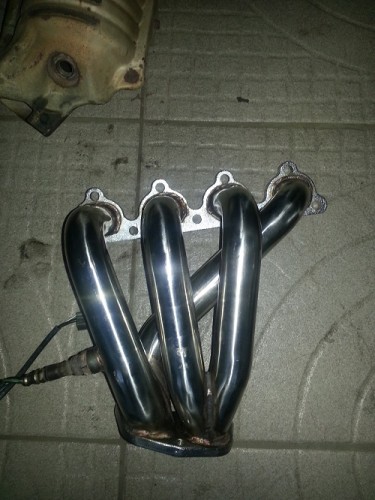

sensorn removed from the stock manifold and replaced onto the extractor manifold

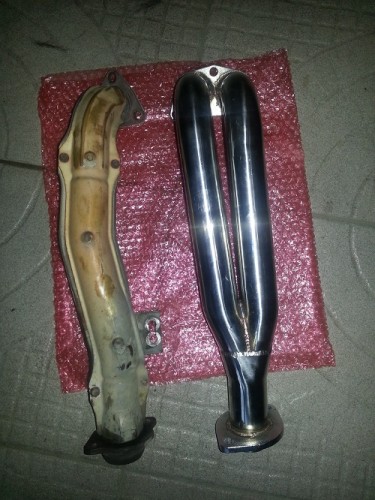

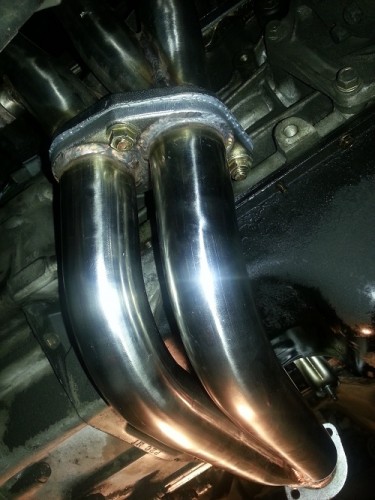

lower pipe

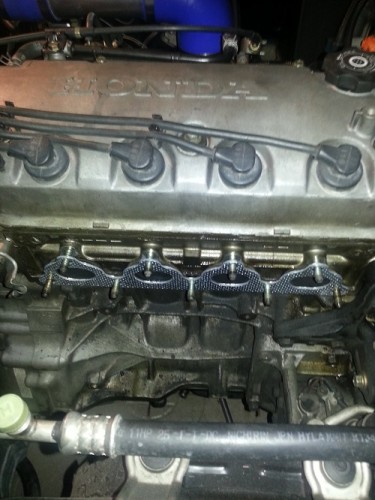

replaced Gasket with a new


place manifold onto engine bolt up from the center go out so the gasket seats evenly

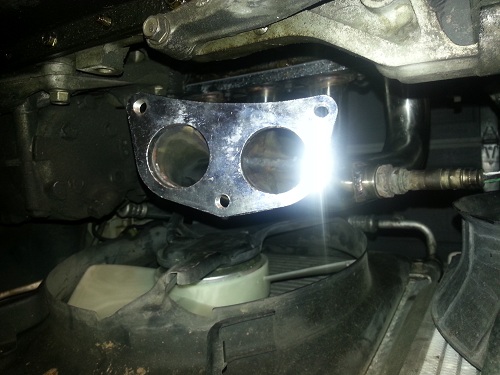

bottom flange

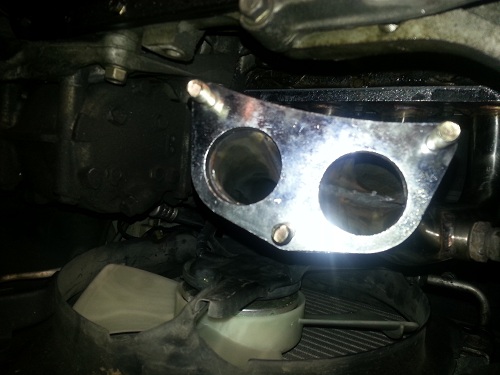

studs in place and tighten also fit up new gasket

tighten the 3 stud bolts

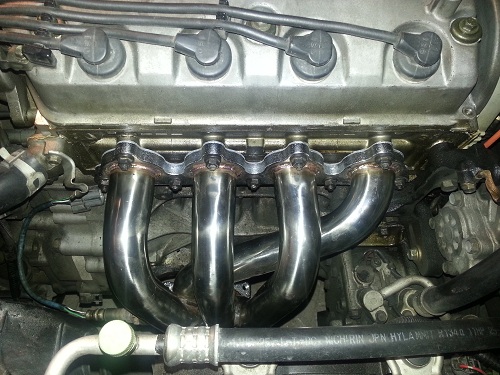

Job finish .... im goin to add a full cat back exhaust which i should bolt up later tonite

for those who will go the the exhaust guy to build a cat back you will save at least $400 - $500 if u install the extractor manifold yourself ...

[boostbeast]

nice job!!!

[Gx7]

thanks ^^^

[ruffnek]

showoff!!!

like yuh on ah role

[silvy]

NICE WORK HOMIE

[black start]

it would have been nice to quantify the extent of the upgrade....any charts?

[Gx7]

it would have been nice to quantify the extent of the upgrade....any charts?

i goin to do some head work but i waiting on paul to get some time if u know him u'll know how his timing is .... and well rally was today so u know what happen last week

so when im finish i'll dyno her

[red_dragon]

it would have been nice
Base WHP....
exhaust ....
head work....

I would not recommend head work unless you are going with bigger cams....

money spent to do a proper PP does not equate to the HP gains

[black start]

it would have been nice to quantify the extent of the upgrade....any charts?

i goin to do some head work but i waiting on paul to get some time if u know him u'll know how his timing is .... and well rally was today so u know what happen last week

so when im finish i'll dyno her

who be this paul you speakth off?

[Gx7]

Paul from montrose

[black start]

nah can't say that I know him...

[CD4Accord]

Paul Stocklin you referring to?

[Zim]

Yeah^

Nice job, K...... dat a sweet header! U eh even tell me abt this 1 :O

[Gx7]

Yeah^

Nice job, K...... dat a sweet header! U eh even tell me abt this 1 :O

i want to run up orn ya bumper and see what meh lil D15 could do to a b16

[Zim]

weeeys man call me out publicly yes

U never know, I may surprise u

[Gx7]

:lol: weeeys man call me out publicly yes

U never know, I may surprise u

surprise me with what

[Zim]

If u knew it won't be a surprise now, would it? :littleangel:

[Gx7]

If u knew it won't be a surprise now, would it? :littleangel:

like u put a sr20det in d wagon

[JDM_GUY]

nice work. Where you get the headers to buy, know a guy who wants one

[Zim]

If u knew it won't be a surprise now, would it? :littleangel:

like u put a sr20det in d wagon

[Gx7]

nice work. Where you get the headers to buy, know a guy who wants one

SJR Imports in Debe

[JDM_GUY]

How much you pay for it?

[Gx7]

$1000
